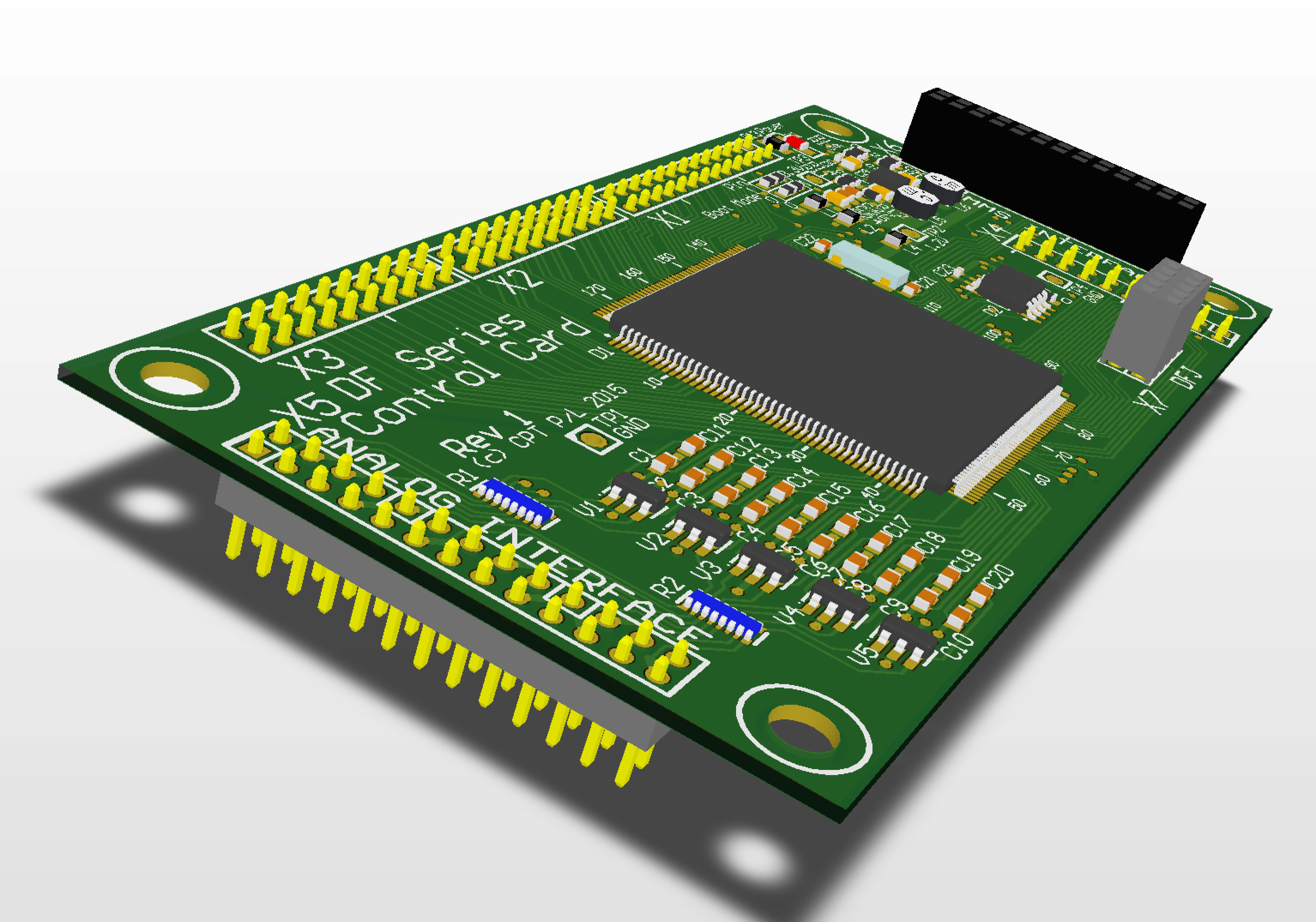

DF Series Control Cards

PCB CPT-DFCC

The DF Series Control Cards are low cost standardised MCU controller boards designed to provide a flexible interface between the Texas Instruments Piccolo TMS320F2807x and Delfino TMS320F2837xS / TMS320F2837xD MCU processor range and a DF Series Compatible Motherboard. The Control Card has been designed with generic interfaces that provide external access to the core MCU functionality.

The default DF Series Control Card boards are:

  • CPT-DF28075 with the 'Piccolo' TMS320F28075 MCU
  • CPT-DF28377D using the 'Delfino' TMS320F28377D dual-core MCU

Please refer to the ordering codes tab for additional alternatives

The DF Series Control Cards are DF Series Interface compatible.

Email Creative Power or Phone for pricing and availability.

Technical Specifications



For specific details refer to the Technical Brief available in the Downloads tab

  • On-card features include:
    • 176-pin PTP footprint compatible circuit board. Available MCU Options:
      • Delfino TMS320F2837xS Microcontroller Range
      • Delfino TMS320F2837xD Dual-Core Microcontroller Range
      • Piccolo TMS320F2807x Microcontroller Range
    • Serial Flash Memory with 1Mbit of non-volatile storage
      • Options for 2 / 4 / 8 / 16 Mbit available
    • Internal MCU Temperature Sensor
    • Analog Glitch Filtering and clamp circuitry
    • 1 off Power LED
    • Reset/Power-On Circuitry
    • On-card 3.3V/1.2V regulated power supply generation
    • Power supply operation from input +5VDC
  • The card also supports the following DF Series interfaces:
    • DF Series Main Interface - Analog Header
      • 26-way 2mm Analog header
      • 20 off 12-bit 0 -3 (3.3)V ADC inputs
      • Analog Ground
    • DF Series Main Interface - Digital Headers
      • 3 x 20-way + 1 x 26-way 2mm Digital Headers
      • 65 GPIO configurable pins
      • Reset Signal
      • +5V Power Supply input
      • +3.3V output
      • Digital Ground
    • 1 x 26-way 2mm Communications Header
      • Part of DF Series Communications Interface
      • 19 GPIO configurable pins - targeted to communications functions
      • Reset Signal
      • +5V Power Supply input
      • +3.3V output
      • Digital Ground
    • DF Series JTAG/SCI interface
      • 10-way header
      • CPT-DFJ compatible
      • contains JTAG SPI Interface signals + SCI Port A
  • Dimensions:
    • 96mm x 46mm (3.78" x 1.81")

Peripherals



Motherboards

  • CPT-DFM1 - DF Series Inverter Controller Motherboard (on-card Gate Drivers)
  • CPT-DFM2 - DF Series Inverter Controller Motherboard (external/plug-in Gate Driver Board)

Communications Cards

  • CPT-DFC2 - Dual Isolated USB Serial Ports + Isolated CAN + RTC
  • CPT-DFC4 - Isolated RS485 Serial Port + Isolated CAN
  • CPT-DFJ - DF Series Isolated USB JTAG + SCI Interface

Software

  • Software Libraries

Ordering Codes



Base Part Number
Standard Models CPT-DF28075 TMS320F28075 PTP MCU
CPT-DF28377DTMS320F28377D PTP MCU
Custom Models - MOQ Applies CPT-DF28374STMS320F28374S PTP MCU
CPT-DF28375STMS320F28375S PTP MCU
CPT-DF28376STMS320F28376S PTP MCU
CPT-DF28377STMS320F28377S PTP MCU
CPT-DF28374DTMS320F28374D PTP MCU
CPT-DF28375DTMS320F28375D PTP MCU
CPT-DF28376DTMS320F28376D PTP MCU
+ Serial Flash Memory
Standard Models Blank1Mbit Serial Flash
Custom Models - MOQ Applies 2MB2Mbit Serial Flash
4MB4Mbit Serial Flash
8MB8Mbit Serial Flash
16MB16Mbit Serial Flash

Additional options for socket pin length, or direct soldered connections to the motherboard available by request.

Please contact Creative Power for pricing and availability.
