15kW Isolated DC-DC Converter
 |
The 15kW DC-DC Converter is an isolated uni-directional DC to DC converter primarily tailored for operation with a 60-120V rated Fuel Cell power source. This DC-DC Converter produces a galvanically isolated 650V DC bus. Dual Series Boost Stages are used to achieve the desired nominal 650V DC output. |
|
External communication is via an external CAN System Controller. The DC-DC Converter supports paralleling of Modules. This enables higher power conversion to be easily achieved. The output is current regulated to ensure sharing between modules. An inter-Module CAN communications interface cable is required to support this paralleled Mode of operation. |
|
- Dual Boost Stages
- High-Current MOSFET based Interleaved Boost Stage
- MOSFET based Resonant Bridge
- Current Regulated Output
- Output Voltage Droop
- Galvanic Isolation – Input/Output
- Output short-circuit Protection
- Input and Output Over Current protection
- Input Under & Over Voltage Detection
- DC link voltage monitoring
- Heatsink Over Temperature Protection
- Input and Output Power Cable Disconnect Detection
- Galvanic Isolation - Controller
- Low loss/high efficiency operation
- Water Cooled (3/8" Pipe)
- 19” Rack Mounted Modular design
- All Power connections at the rear of the Module
- Isolated External CAN interface
- Isolated Inter-Module CAN interface (for Master/Slave Connection)
- Internal Data logging, as standard
- Parallel Operation (Multiple Modules)
- USB Debug interface
- Controller Power Switch
Technical Features

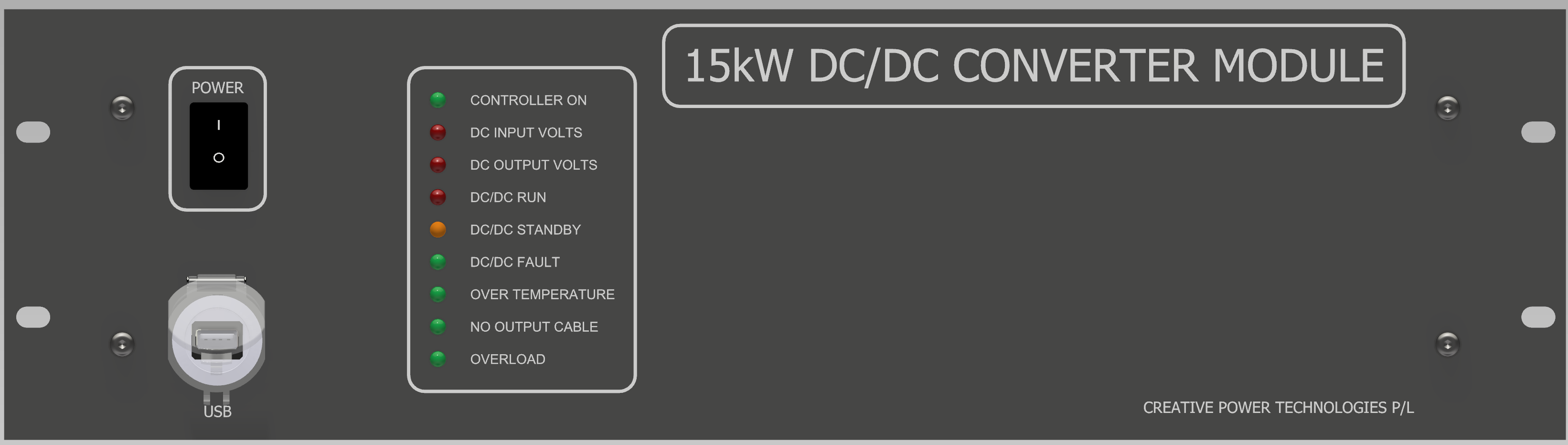

15kW DC-DC Converter Front Panel
Technical Specifications
| Electrical | |
|---|---|
| Input DC Voltage | 60 - 120 V DC |
| Input Current | 250 A limit per Module |
| Power Rating | 15 kW maximum (per Module) |
| Output DC Voltage | 550 - 700 V DC |
| 650 V DC (Nominal) | |
| Parallel Operation | Fully Supported |
| Converter Efficiency | >93% |
| Control Power | 18 - 30 V DC with On/Off Control Switch (rear) | Communications |
| CAN | 1 x External, 2 Inter-Module(rear panel) | Standard ISO11898-2, ISO11898-1 (2.0 A and B) |
| Isolation | 2500 Vrms |
| Fail-Safe Outputs | |
| Bus Fault Protection (-27 - 40 V) | |
| Transient Immunity | 50 kV/μs Typical |
| USB Debug Port | USB 2.0 (front panel) | Mechanical |
| Construction | 19" Rack 3U Height, Full Depth - Modular |
| Dimensions (mm) | L: 650 mm |
| W: 483 mm | |
| H: 133 mm | |
| Weight | 18 kg |
| Power Stage Cooling Medium | Water Cooled |
| 3/8" Pipe Inlet/Outlet | |
| Flow Rate: 3 litres/minute | |
| Inlet Temperature: 25°C maximum | |
| Enclosure Cooling | Forced Air Cooling |

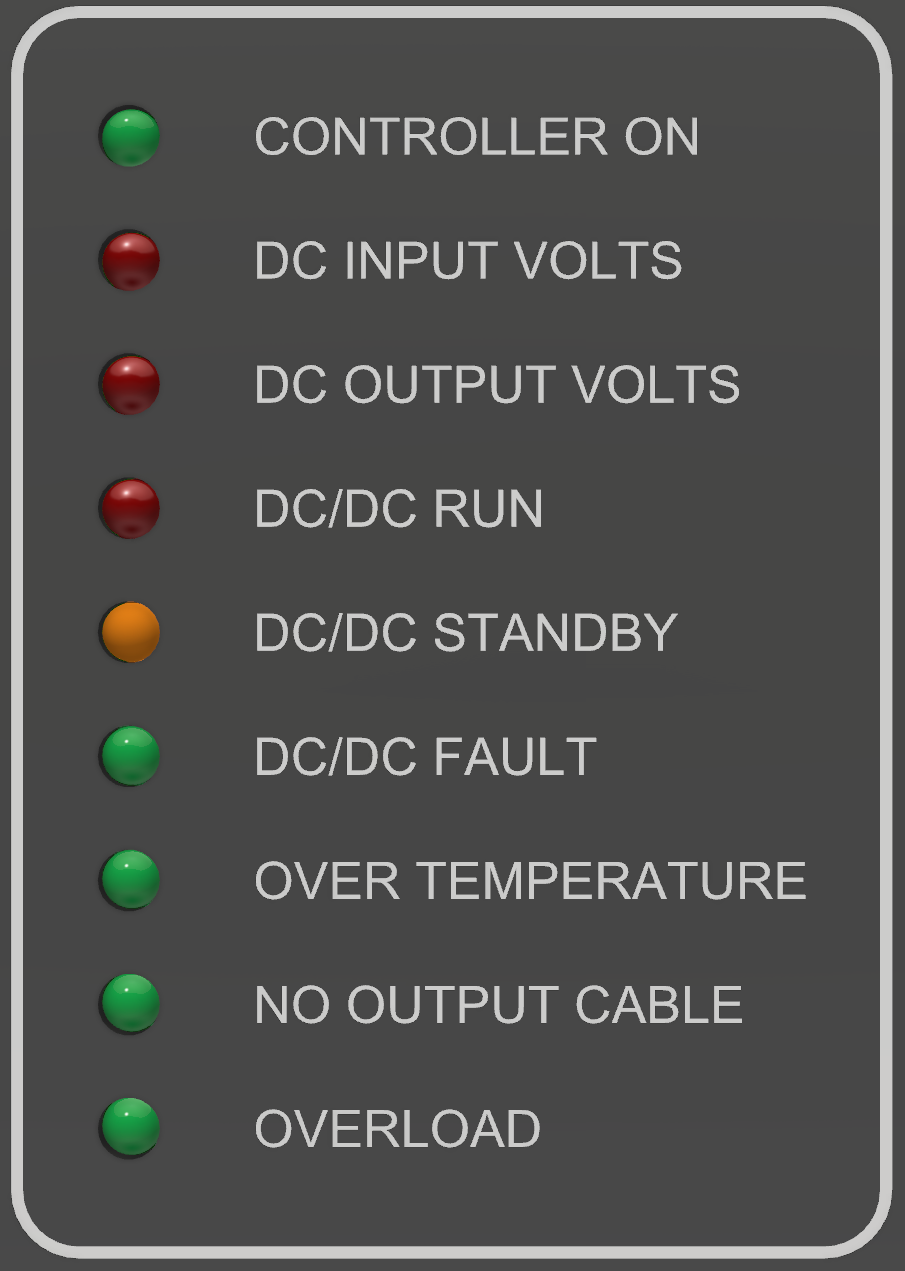

| Front Panel Status LEDs |  |
Environmental |
| Operating Temp. Range | -10°C to 55°C |
| IP Rating | 20 |
| Humidity | 5% - 95% non-condensing |

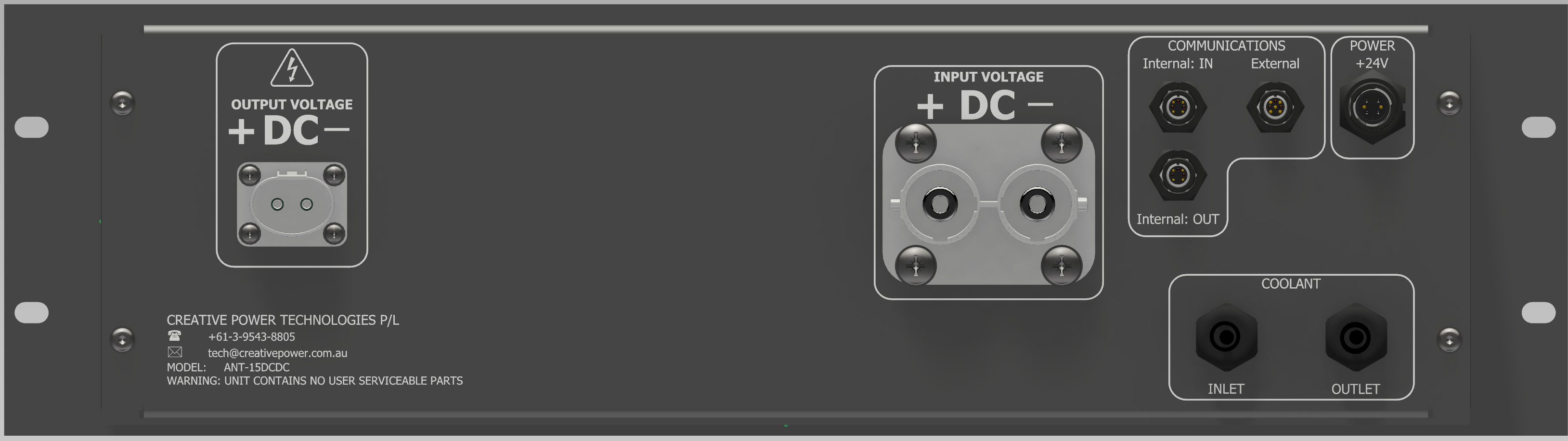

15kW DC-DC Converter Rear Panel
- Technical Manual available from CPT via email inquiry
