TMS320F2810 based MCU boards

TMS320F2810

Texas Instruments developed a range of MCU products designed specifically for digital motor / motion control.

Creative Power has a range of boards that use the TMS320F281x MCU platform.



The TMS320F281x MCU based controller cards are available in several forms:

  • Plug-in DA Series compatible controller, for use within custom motherboards - CPT-DA2810
  • Standalone Inverter controllers, with 24V SMPS and TTL level gates - CPT-E01
  • General Inverter controllers, with LV supply and buffered analog inputs and TTL Level Gate Drivers - CPT-R09 or CPT-R19
  • Standalone Inverter controller, with gate driver and SMPS - CPT-E13

All boards can be ordered in TMS320F2810 or TMS320F2811 varieties.

Note the TMS320F2811 is standard on the CPT-R09 and CPT-R19 only.

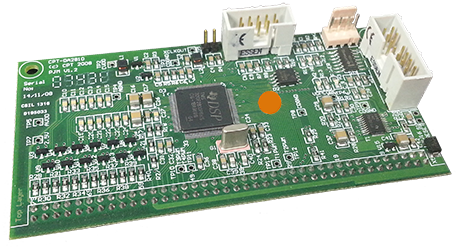

CPT-DA2810 - Generic TMS320F2810/11 Based Processor board

CPT-DA2810
  • MCU controller - TMS320F2810/TMS320F2811 compatible
  • Expansion Port
  • Buffered JTAG interface
  • Serial Flash
  • On-card status LEDs
  • 16 ADC Channels, with glitch filtering
  • On-card regulators
  • +5V input supply
  • DA Series plug-in Compatible (compatible with CPT DA Series motherboards)
  • Dimensions: 110mm x 55mm

Available Peripherals: CPT-COM, CPT-COM-U, CPT-DATS, CPT-E13, CPT-VL01, CPT-DTB, CPT-ITB, CPT-Mini2810

CPT-E01 - Inverter Controller - TTL Level Gate Drivers, +24V Supply

CPT-E01
  • MCU controller - TMS320F2810/TMS320F2811 compatible
  • Buffered JTAG interface
  • Serial Flash
  • High Voltage and Current Input Compatible Conditioned Analogs
  • Isolated Digital I/O
  • Status LEDs and DIP Switch inputs
  • Digital I/O Expansion Headers
  • 2 off separately Isolated RS232/RS485 interfaces
  • Buffered TTL Level Gate Drivers
  • 24VDC Supply
  • Dimensions: 213mm x 180mm
  • Board is available in customized configurations, MOQ applies

Available Peripherals: CPT-COM, CPT-COM-U, CPT-JTAG, CPT-E02, CPT-E10, CPT-E49

CPT-E13 - Inverter Controller - On-card Gate Drivers

CPT-E13
  • DA Series Compatible Motherboard.
  • CPT-DA2810/CPT-DA28035 Plug-in controller compatible
  • Default Configuration: Inverter Controller
  • High Voltage and Current Input Compatible Conditioned Analogs
  • 8 off complementary isolated gate driver PWM outputs, with 2 groups of fault interrupts
  • Isolated Digital I/O
  • Isolated SPI Interface
  • Isolated RS485 Interface
  • Quadrature Position Encoder Inputs
  • Status LEDs and DIP Switch inputs
  • Supply Options: 24VDC, 50-150VDC, 85-265VAC, 200-440VAC
  • Dimensions: 275mm x 220mm
  • Board is available in customized configurations, MOQ applies

Available Peripherals: CPT-E46 - Optically Isolated Voltage Measurement Board, CPT-U05 - 24V DC Supply, CPT-COM, CPT-COM-U, CPT-DIOE

CPT-R09 - Buffered Generic Controller (with Isolated USB)

CPT-R09
  • MCU controller - TMS320F2810/TMS320F2811 compatible
  • Buffered JTAG interface
  • Serial Flash
  • 12 Analog Inputs (glitch filtered and protection clamped)
  • Status LEDs and DIP Switch inputs
  • Buffered Digital I/O Expansion Headers
  • Open Collector Digital Outputs
  • 16 off complementary TTL-level gate driver PWM outputs, with common fault interrupt and enable
  • Real-time clock
  • Isolated USB interface
  • TTL Debug Serial Port
  • Buffered TTL Level Gate Drivers
  • On-card regulators
  • 12VDC Supply
  • Dimensions: 150mm x 115mm
  • Board is available in customized configurations, MOQ applies

CPT-R19 - Buffered Generic Controller (with isolated RS232/RS422/RS485)

CPT-R19
  • MCU controller - TMS320F2810/TMS320F2811 compatible
  • Buffered JTAG interface
  • Serial Flash
  • 12 Analog Inputs (glitch filtered and protection clamped)
  • Status LEDs and DIP Switch inputs
  • Buffered Digital I/O Expansion Headers
  • Open Collector Digital Outputs
  • 16 off complementary TTL-level gate driver PWM outputs, with common fault interrupt and enable
  • Isolated RS232/RS422/RS485 interface
  • 2 off TTL Debug Serial Port
  • RS232 Serial Port
  • Real-time clock
  • Buffered TTL Level Gate Drivers
  • On-card regulators
  • 12VDC Supply
  • Dimensions: 150mm x 115mm
  • Board is available in customized configurations, MOQ applies

CPT-ITB - Thyristor Controller - on-card drivers

CPT-ITB
  • DA Series Compatible Motherboard.
  • CPT-DA2810/CPT-DA28035 Plug-in controller compatible
  • Default Configuration: Thyristor Controller
  • Supports up to 8 thyristors
  • On-card Isolated Thyristor Gate Drivers
  • Single board solution
  • High Voltage and Current Conditioned Analogs
  • Isolated Digital I/O
  • LCD Interface
  • Buzzer
  • Temperature Sensor
  • SPI Interface
  • Isolated RS232/RS485 Interface
  • Isolated RS485 Interface
  • Status LEDs and DIP Switch inputs
  • Supply Options: 24VDC, 50-150VDC, 85-265VAC, 200-440VAC
  • Dimensions: 275mm x 220mm

Available Peripherals: CPT-U05 - 24V DC Supply, CPT-COM, CPT-COM-U

CPT-DTB - Distributed Thyristor Controller - off-card drivers

CPT-DTB
  • DA Series Compatible Motherboard.
  • CPT-DA2810/CPT-DA28035 Plug-in controller compatible
  • Default Configuration: Thyristor Controller
  • Off-card Thyristor Gate Driver Board Support
  • High Voltage and Current Conditioned Analogs
  • Isolated Digital I/O
  • LCD Interface
  • Differential Digital I/O signals
  • Temperature Sensor
  • SPI Interface
  • 2 off separately Isolated RS485 Interfaces
  • Status LEDs and DIP Switch inputs
  • Supply Options: 200-440VAC
  • Dimensions: 300mm x 155mm
