Older Products

The MCU based products listed on this page are not available for new designs. They are provided for support purposes and maintenance/service replacements only.

The power stages listed, in particular the CS-IIB and CS-IIC, are available for use with alternative plug-in controllers, although it is recommended to contact Creative Power directly as there may be more appropriate options available for your use.

Please refer to the TMS320F2810 and TMS320F28035 product pages for the newer range of MCU controllers.



Creative Power specializes in the development of custom solutions to meet specific customer requirements. This can be achieved through the use of Creative Power's extensive "building blocks" of controllers and power stage designs.

CS-GIIB

CPT-Mini2810

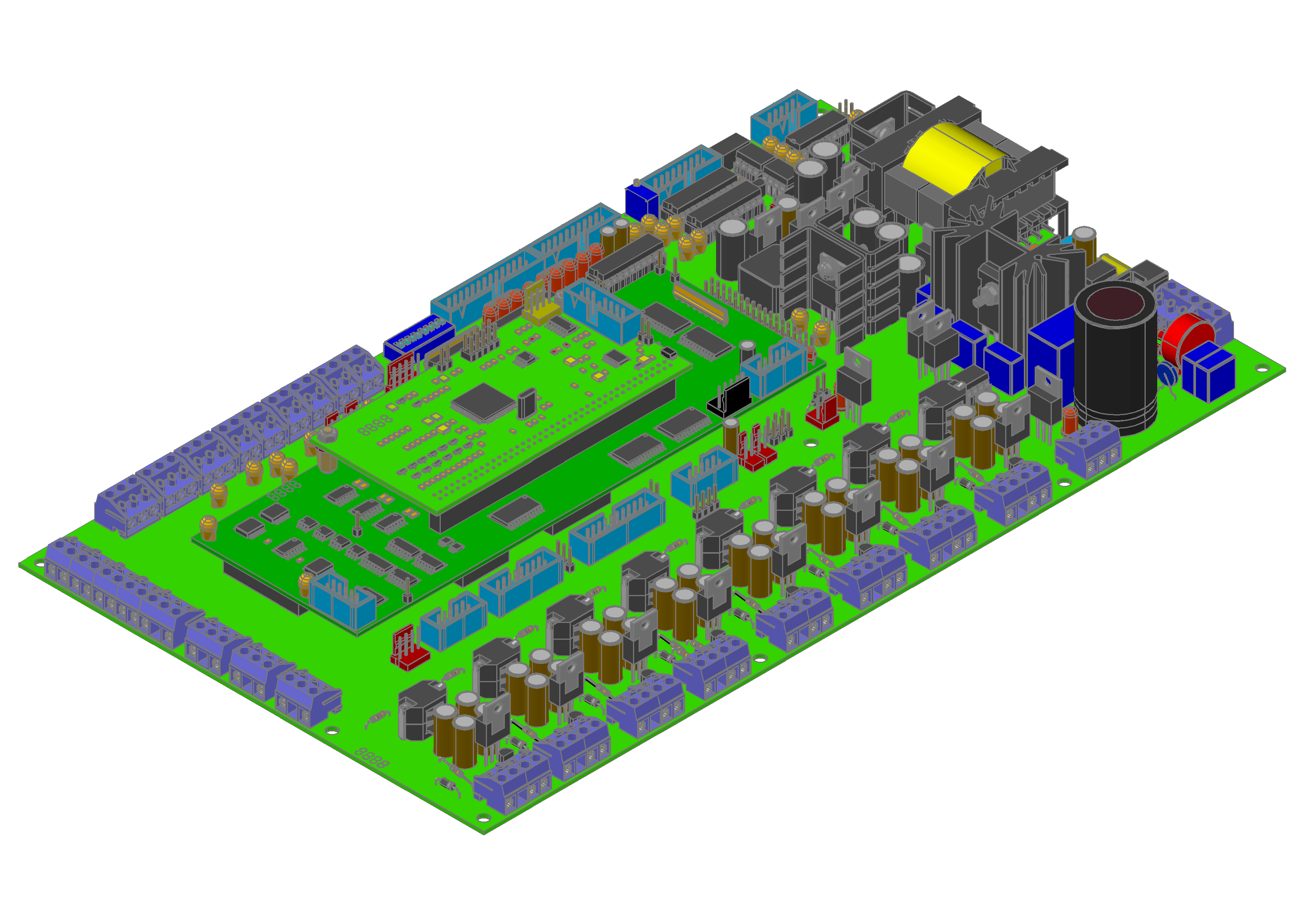

The CS-GIIB is a flexible, low-voltage, 4-phase leg integrated inverter that has been designed for applications requiring a single simple controller with external power stage. The board has 8 gate driver outputs capable of driving up to a 50kVA power stage and sufficient digital and analog conditioned signals to enable it to operate, with plug-in CS-MiniDSP /CPT-Mini2810 processor card, as a standalone system.

CS-IIB

CS-IIB

The CS-IIB is a flexible, low-voltage, 4-phase leg integrated inverter that has been designed for applications requiring a single simple platform. The board includes an on-card FET/IGBT-based power stage and sufficient digital and analog conditioned signals to enable it to operate, with plug-in CS-MiniDSP /CPT-Mini2810 processor card, as a standalone system.

CS-IIC

CS-IIC

The CS-IIC is a flexible, low-voltage, 4-phase leg integrated inverter system that has been designed for applications requiring a single low height simple inverter platform. The board includes an on-card FET/IGBT-based power stage and sufficient digital and analog conditioned signals to enable it to operate, with plug-in CS-MiniDSP /CPT-Mini2810 processor card, as a standalone voltage source inverter without additional circuitry.

CPT-Mini2810

Mini2810

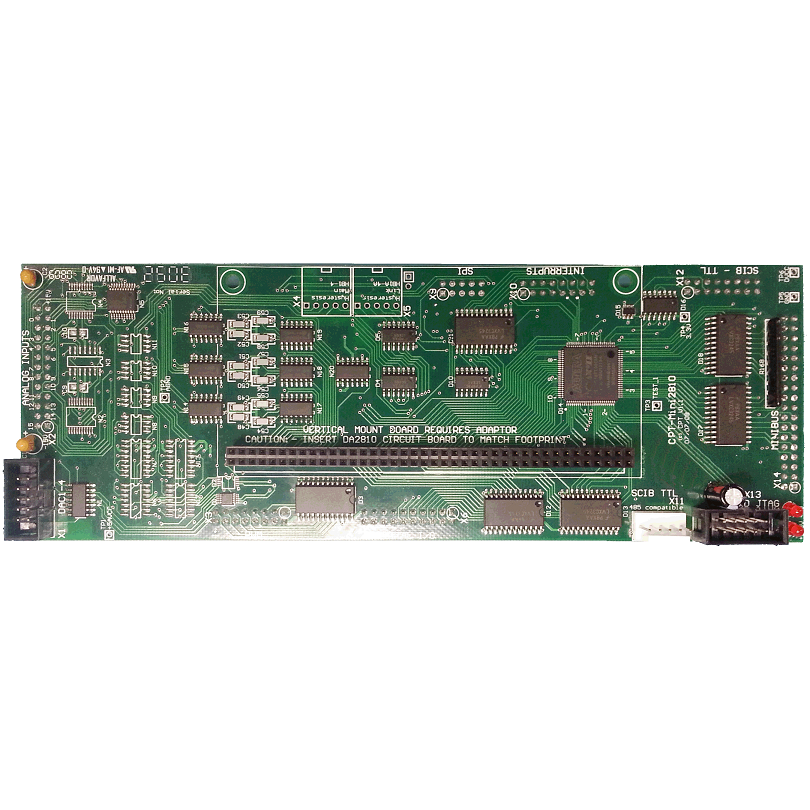

The CPT-Mini2810 interface board is part of the third-generation processor boards based on the MINI MICRO card series.

Used in conjunction with the CPT-DA2810 MCU processor card, it provides a low cost, high performance MCU based controller, intended specifically for applications where a discrete BUS based system would be too expensive, and where time/money/resource constraints make a fully custom design impracticable.

CS-MiniDSP - Legacy Support Only

CS-MiniDSP

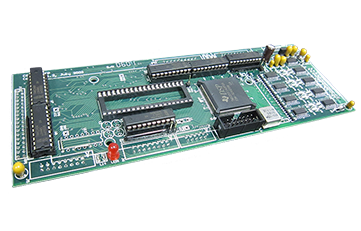

The CS-MiniDSP controller board was the second-generation main processor board of the MINI MICRO card series. The TMS320F240 MCU-based controller was intended specifically for applications where a discrete BUS-based system would be too expensive, and where time/money/resource constraints make a custom design impracticable.

The board is only available now for legacy product support.

DSP240-LPI - Legacy Support Only

CPT-COM

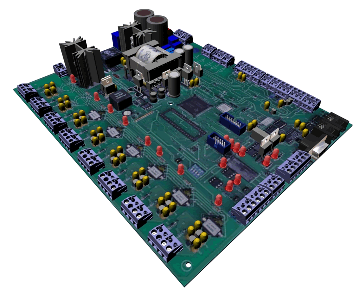

The DSP240-LPI controller board was a low-cost, high- performance MCU-based inverter controller that was designed for applications requiring a single board solution to control up to a four-phase VSI stack.

The card was based around a Texas Instruments TMS320F240 MCU chip, which has been specifically developed for use in digital motor/motion control applications, and contains on-card all necessary functions for a complete standalone inverter control system.

Very small numbers of boards available, but only as service replacements in existing products.

NB: Obsolete Part - Replaced by the CPT-E13
