Auxilliary Interface

The boards listed below are all designed to provide interfaces to CPT MCU platforms. They range from CPT MCU platform plug-in boards to isolated serial and JTAG interfaces



Creative Power specializes in the development of custom solutions to meet specific customer requirements. This can be achieved through the use of Creative Power's extensive "building blocks" of controllers and power stage designs.

CPT-DAJ - TTL to Isolated Mini USB JTAG and UART Card

CPT-DAJ

The CPT-DAJ is an isolated JTAG and Serial Communications Interface (SCI)/UART card. It provides an isolated mini-USB interface for a Texas Instruments based microcontroller (MCU), as found on CPT’s DA Series Control Cards. The JTAG Interface Card uses the same interfacing circuitry and EEPROM as found on Texas Instruments own controlCARD series.

The board requires a powered USB interface and the USB driver is compatible with all Windows 7, Windows 8 and Windows 10 PCs.

CPT-COM-U - TTL to Isolated USB Serial Interface

CPT-COMU

The CPT-COM-U is an isolated interface board that converts a 3.3/5V-TTL level serial communications signal to a fully isolated USB interface.

The board is compatible with a Type B USB connector and can be loaded with either a vertical or horizontal connector

The board requires a powered USB interface and the USB driver is compatible with all Windows 7, Windows 8 and Windows 10 PCs.

CPT-COM - TTL to Isolated RS232/RS422/RS485 Serial Interface

CPT-COM

The CPT-COM is an isolated interface board that converts 3.3V-TTL level serial communications signals to a fully isolated link selectable RS232/RS422/RS485 output.

Configuration links provided for terminating resistors on the RS422/RS485 interface and for selection of DCE/DTE modes in RS232.

The board can be powered from the 3.3V-TTL level serial port connector or an external 5.3-25V DC power source.

CPT-COM-B - TTL to Isolated RS232 Serial Interface

CPT-COM-B

The CPT-COM-B is an isolated interface board that converts a 3.3V-TTL level serial communications signals to a fully isolated RS232 compatible signal.

The board can be powered from the 3.3V-TTL level serial port connector, an external 5.3-25V DC power source or an on-card 9V battery.

CPT-JTAG - Isolated JTAG Interface

CPT-JTAG

The CPT-JTAG is an isolated JTAG Inteface board designed for the TMS320F28xx/TMS320F280xx series MCUs to interface to a JTAG pod through a 1000V+ isolated interface. The board is compatible with the IEEE 1149.1 standard JTAG interface.

CPT-QEPI - Isolated Quadrature Position Encoder Interface

CPT-QEPI

The CPT-QEPI is an Isolated Quadrature Encoder Input board designed for the CPT range of TMS320F28xx/TMS320F280xx series MCU boards.

CPT-COM-S - Isolated Differential SPI Interface

CPT-COM-S

The CPT-COM-S is an SPI to Isolated Differential SPI Inteface board designed for the CPT range of TMS320F28xx/TMS320F280xx series MCU boards. The board provides an isolated Master/Slave Clocked Serial Peripheral Interface.

CPT-DATS - DA Series Test/Development Board

CPT-DATS
  • DA Series Compatible
  • Development Platform for CPT-DA2810 or CPT-DA28035 controller boards
  • Test Platform for CPT-DA2810 (TMS320F2810 MCU) and CPT-DA28035 (TMS320F28035) controller boards
  • MCU Controller Interface
  • Non-Isolated RS232 Interface
  • Buffered Digital I/O
  • Analog Input Interfaces (pin compatible with CPT-R09 and CPT-R19)
  • TTL Level buffered PWM outputs
  • On-card +5V Regulation

The board is intended to simplify program development for the CPT-DA2810 and CPT-DA28035 platforms when they are to be used in custom motherboards.

CPT-DDTS - DD Series Test/Development Board (DA28035)

CPT-DDTS
  • DD Series Compatible
  • Development Platform for CPT-DD28035 (Dual TMS320F28035) controller board
  • Test Platform for CPT-DD28035 (Dual TMS320F28035) controller board
  • Dual MCU Controller Interface
  • Non-Isolated RS232 Interfaces
  • Non-Isolated CAN Interfaces
  • Buffered Digital I/O
  • Analog Input Interfaces (pin compatible with CPT-R09 and CPT-R19)
  • Dual QEP Interfaces
  • TTL Level buffered PWM outputs
  • +12V Supply Voltage
  • On-card Regulation for +5V and +3.3V
The board is intended to simplify program development for the CPT-DD28035 platform when it is to be used in custom motherboards.

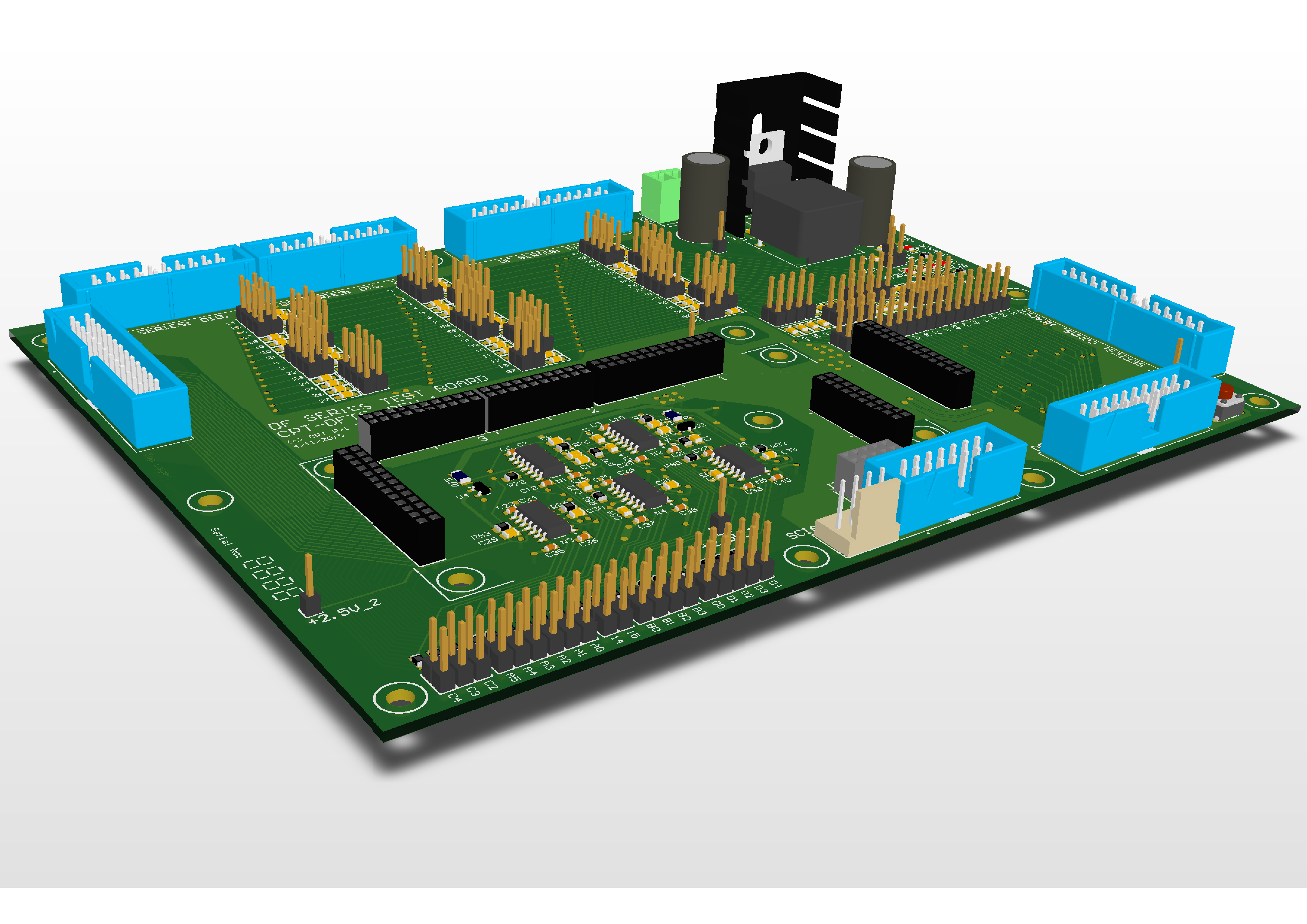

CPT-DFTS - DF Series Test/Development Board (DFCC Range)

CPT-DFTS
  • DF Series Compatible
  • Development Platform for CPT-DFCC (TMS320F2807x, TMS320F2837x) controller board
  • Test Platform for CPT-DF2807x and CPT-DF2837x controller boards
  • DF Series Interface
  • Non-Isolated RS232 Interfaces
  • Non-Isolated CAN Interfaces
  • Buffered Digital I/O
  • Analog Input Interfaces (pin compatible with CPT-R09 and CPT-R19)
  • Dual QEP Interfaces
  • TTL Level buffered PWM outputs
  • +12V Supply Voltage
  • On-card Regulation for +5V and +3.3V
The board is intended to simplify program development for the CPT-DFCC range of cards without requiring an external motherboard.
