DF Series Cards

DFCC

The DF Series provides a modular, flexible integrated inverter controller platform. The core MCU platforms use Texas Instruments latest range of Piccolo and Delfino Microcontrollers. The power of these Microcontrollers is combined with a flexible motherboard and peripheral card range to produce an overall inverter platform.

The DF Series Control Card interfaces directly with a DF Series Inverter Controller Motherboard. This combination provides all of the inputs and outputs required to directly drive an inverter with up to 30kW rating (50kW+ with optional G05 Gate Driver).

The use of multiple cards allows the functionality of the DF Series card stacks to be tailored to specific applications.

The Tabs below provide additional informtion on the cards within the DF Series range. Please refer to the individual card pages for specific details.

Creative Power specializes in developing custom solutions to meet customers' specific requirements.

Email or Phone Creative Power to find out how our listed products can be adapted to suit your needs.

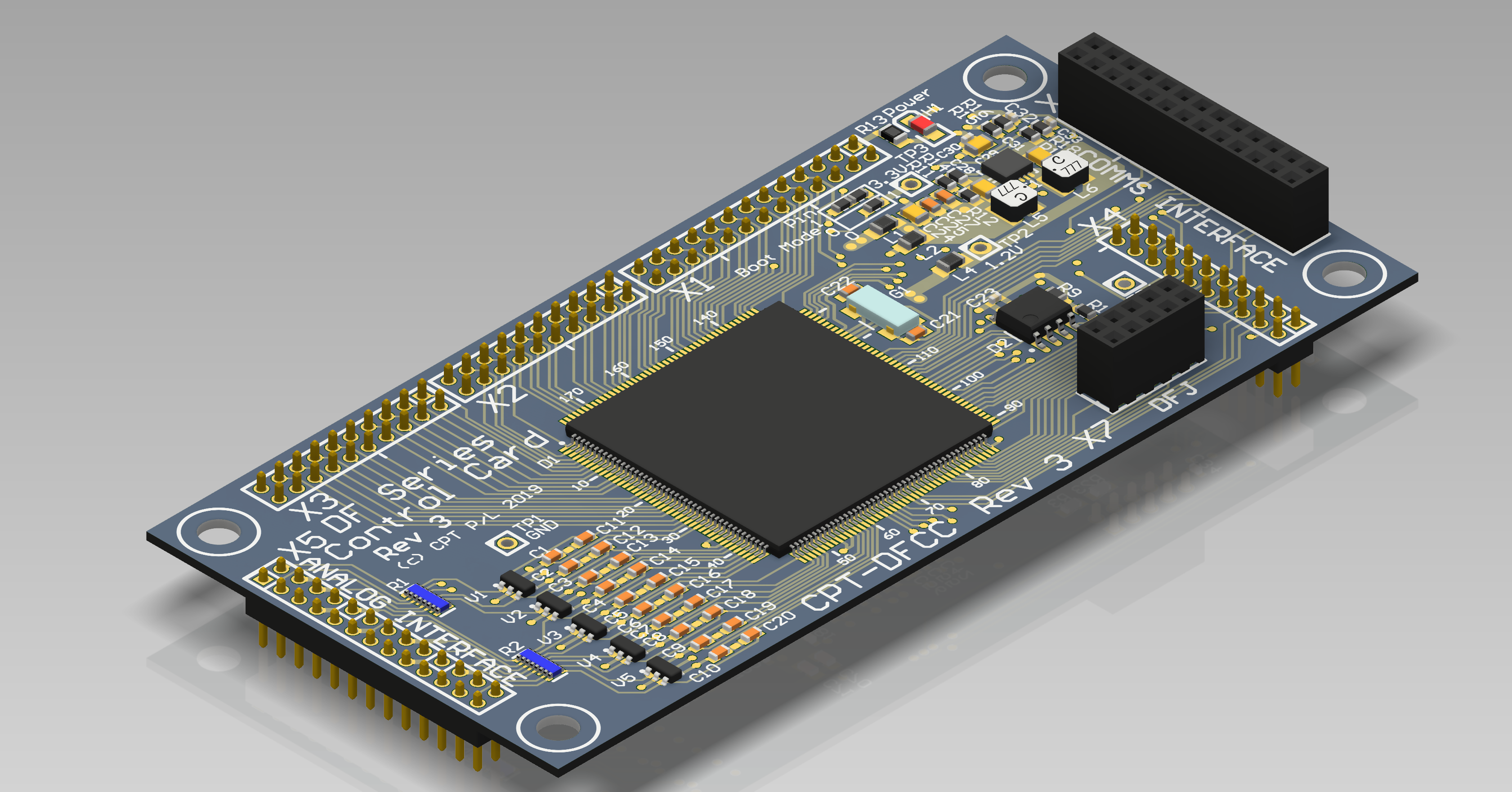

Microcontroller Control Cards

The DF Series Control Cards are based around Texas Instruments’ proven Microcontroller cores, to provide reliable, stable glitch-free operation within a power electronic environment. They support the Piccolo TMS320F2807x and Delfino TMS320F2837xS and TMS320F2837xD Microcontrollers with the 176-pin PTP footprint.

The Control Card mounts to a DF Series Inverter Controller Motherboard and supports the addition of Peripheral Cards for a range of isolated communications interfaces. The Control Card enables boards stacking to provide a higher volume density.

The DF Series platforms are suitable for both prototype and production use. Each card is available with plug-in headers for prototype development and in a direct solder form for production. This minimises any rework when moving to production.

The interconnect structures used with the DF Series have been used for inverter control within harsh vibrational and thermal cycling environments, such as railway rolling stock.

Specific details on the available DF Series Control Cards can be found on the CPT-DFCC page.

Features

  • Single or Dual-core Architecture
  • Single or Dual Programmable Control Law Accelerators
  • Up to 200MHz Processor Speed
  • On-Chip Memory
    • Up to 512k x 16 Flash
    • Up to 102k x 16 RAM
  • 85 Individually Programmable, Multiplexed General-Purpose Input/Output Pins
  • Analog Subsystem
    • Maximum of Four Dual-Mode Analog-to-Digital Converters
    • up to 20 External 12-bit Channels
    • support for operation with 16-bit Channels
    • Glitch Filtering
    • Clamp Protection
    • Dedicated connector for Analog Signals
  • 1Mbit Serial Flash (supports up to 16Mbit)
  • Boot Mode Selection
    • SCI Mode
    • Wait Boot Mode
    • Get Mode (Boot-to-Flash Default)
    • EMU Boot Mode (Emulator Connected)
  • JTAG Emulation Connection
    • USB JTAG Plug-in required
  • Power LED
  • On-card Regulation (+3.3V/+1.2V) Generation
  • +5V Supply

Available Cards - CPT-DFCC

  • CPT-DF28075 - Standard
  • CPT-DF28377D - Standard
  • CPT-DF28374S
  • CPT-DF28375S
  • CPT-DF28376S
  • CPT-DF28377S
  • CPT-DF28374D
  • CPT-DF28375D
  • CPT-DF28376D

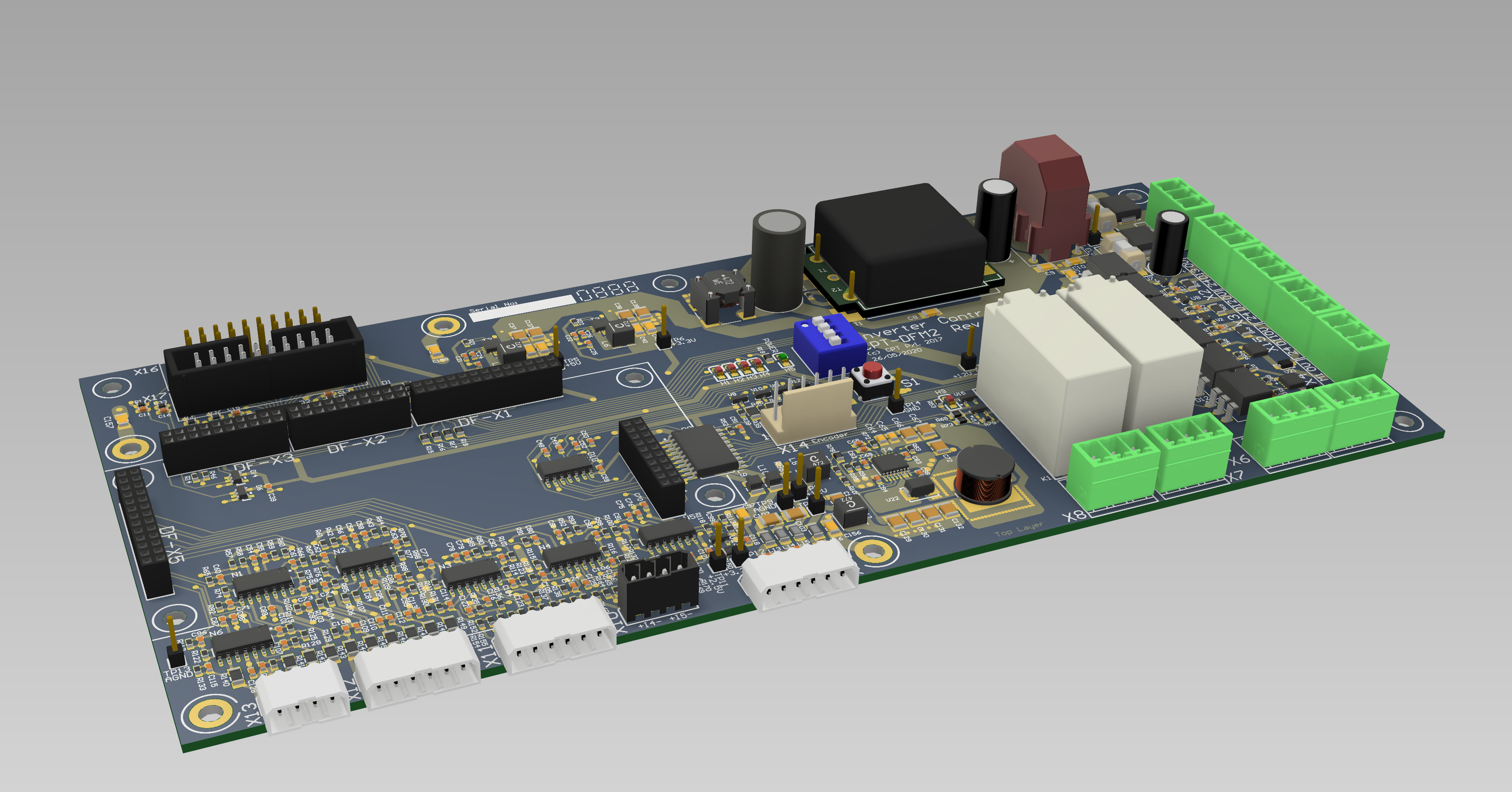

Inverter Controller Motherboards

Inverter Controller Motherboards provide direct interface capability with an inverter power stage. The motherboards support many applications such as Inverters, Battery Chargers, Thyristor Rectifiers or any power electronics based control application.

Solder-in gate driver modules enable the card to drive power stages with ratings from 1kW to 100kW+.

Capabilities

  • Supports single, 3 and 4-phase Inverter Operation
  • Supports dual H-bridge power stages
  • Drives power stages from 1kW to 100kW+
  • Integrated structure
  • Flexible Analog inputs
  • Clean Contact Digital I/O
  • DF Series Microcontroller Platform compatible

Features

  • Flexible gate driver interface
  • Support for up to 8 plug-in gate driver cards
  • 11 off Conditioned Analog Inputs
  • 4-way DIP Switch
  • 4 off Status LEDs
  • 2 Changeover Relay Outputs
  • 3 MOSFET 24V Digital Outputs
  • 2 off 24V "Clean Contact" Digital Inputs
  • Position Encoder Inputs
  • 24VDC Input
  • On-card digital and analog regulated supply generation
  • Small Footprint (220mm x 130mm)

Available Cards

DFM1

Peripheral Communications Cards

The DF Series Peripheral Communications Cards offer a variety of communications interface add-ons for the base DF Series Microcontroller Platforms.

Communications Interfaces available include:

  • Isolated Dual Serial USB (RS232)
  • Isolated RS485
  • Clocked Serial (SPI)
  • Isolated CAN
  • USB JTAG + Serial Port

An RTC (Real-Time Clock), with supercapacitor, is available on the CPT-DFC1 card.

Available Cards

  • CPT-DFC1
    • Isolated CAN - Selectable between CANA or CANB
    • Dual SCI Port to Isolated Mini USB
      • USB-A Selectable between SCIA and SCIC
      • USB-B Selectable between SCIB and SCID
    • Isolated SPI Interface - isoSPI
      • Master/Slave Selectable
      • Mode 0-3 Supported
    • Real-Time Clock, with supercapacitor backup
  • CPT-DFC2
    • Isolated CAN - Selectable between CANA or CANB
    • Dual SCI Port to Isolated Mini USB
      • USB-A Selectable between SCIA and SCIC
      • USB-B Selectable between SCIB and SCID
      • Master/Slave Selectable
      • Mode 0-3 Supported
    • Real-Time Clock, with supercapacitor backup
  • CPT-DFC4
    • Isolated CAN - Selectable between CANA or CANB
    • SCI to Isolated RS422/RS485 Interface
      • Port Selectable between SCIB and SCID
      • Mode Selectable between RS422 and RS485
    • Isolated SPI Interface - isoSPI
      • Master/Slave Selectable
      • Mode 0-3 Supported
  • CPT-DFJ
    • Isolated Mini USB JTAG + Serial Port
      • Serial Port SCIA
