DF Series Peripheral Cards

DF Series

The DF Series provides a modular, flexible integrated inverter controller platform through a range of interconnected cards. This structure provides an overall reduction in the footprint of the inverter, as well as providing a level of flexibility to support inverters rated from 1kW to 100kW+.

CPT-DFC1 - Dual Isolated UART USB

CPT-DFC1
  • DF Series Communications Peripheral card
  • Dual Isolated USB UART Interface
  • Isolated CAN Interface
  • Isolated SPI Interface (isoSPI configuration)
  • Real-Time Clock (I²C)
  • Supply Options: 24VDC, 50-150VDC, 85-265VAC, 200-440VAC
  • Dimensions: 96mm x 46mm (3.78" x 1.81")

CPT-DFC2 - Dual Isolated UART USB

CPT-DFC2
  • DF Series Communications Peripheral card
  • Dual Isolated USB UART Interface
  • Isolated CAN Interface
  • Isolated SPI Interface (isoSPI configuration)
  • Real-Time Clock (I²C)
  • Supply Options: 24VDC, 50-150VDC, 85-265VAC, 200-440VAC
  • Dimensions: 96mm x 46mm (3.78" x 1.81")

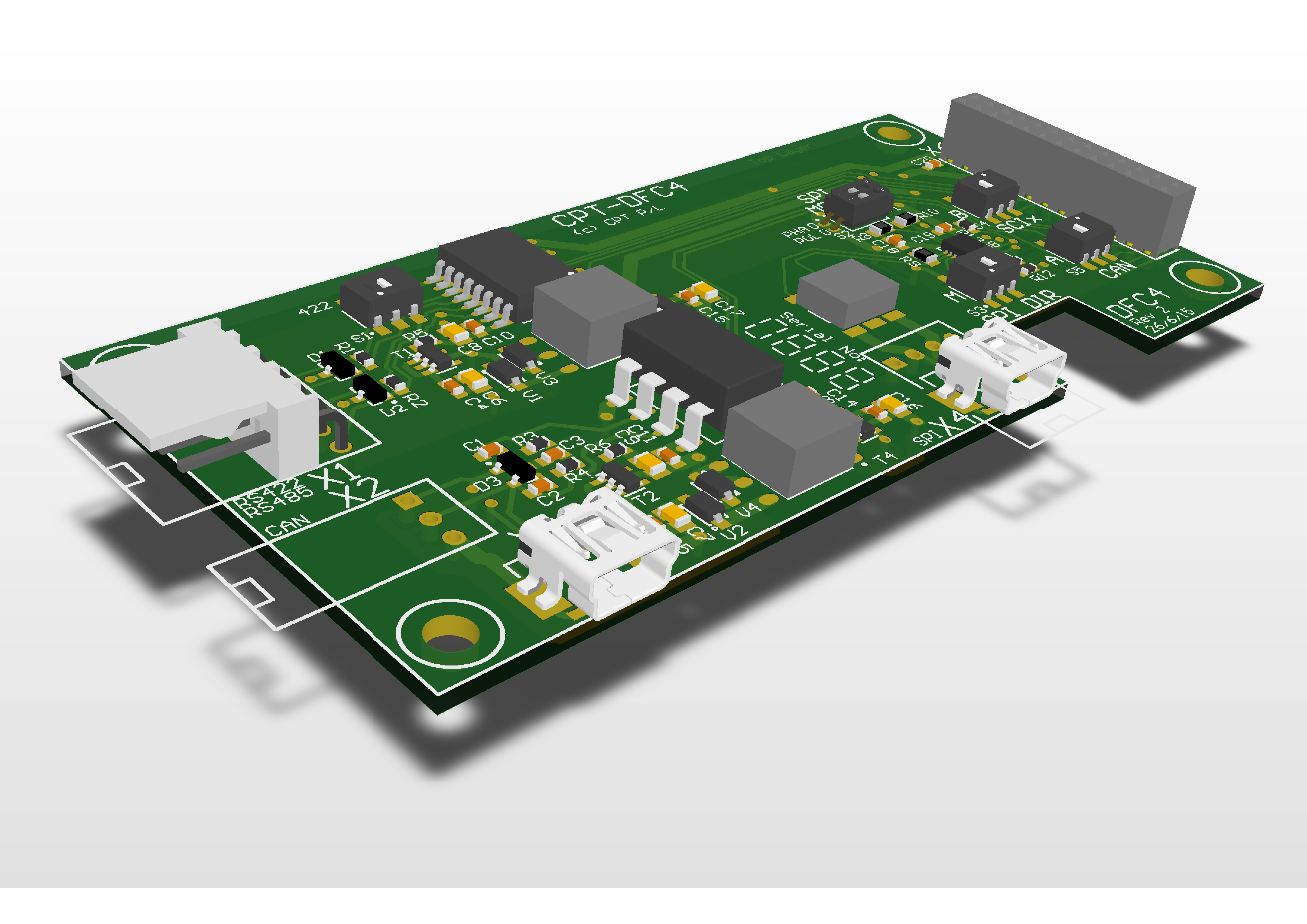

CPT-DFC4 - Isolated RS422/485

CPT-DFC4
  • DF Series Communications Peripheral card
  • Isolated RS422/RS485 Interface
  • Isolated CAN Interface
  • Isolated SPI Interface (isoSPI configuration)
  • 26-way DF Series Communications Interface
  • Dimensions: 96mm x 46mm (3.78" x 1.81")

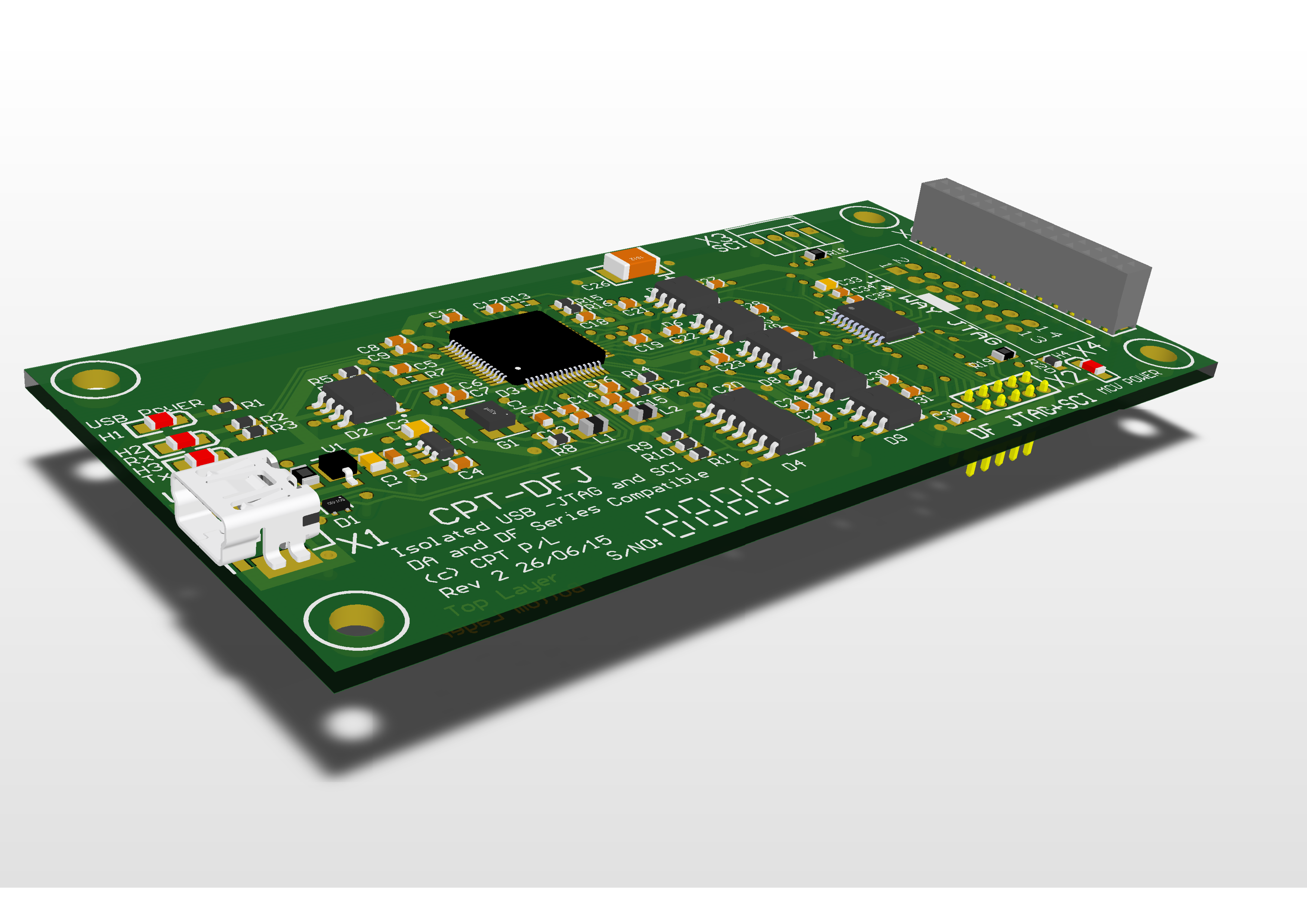

CPT-DFJ - Isolated JTAG/UART USB

CPT-DFJ
  • DF Series Isolated JTAG/UART USB card
  • Isolated JTAG Emulation (XDS100V2 emulator)
  • Mini-USB Isolated Serial Port
  • Enable/Disable switch
  • Communication indication LEDs
  • Available in both Stack and Stand-alone (boxed) configurations
  • Dimensions: 96mm x 46mm (3.78" x 1.81")

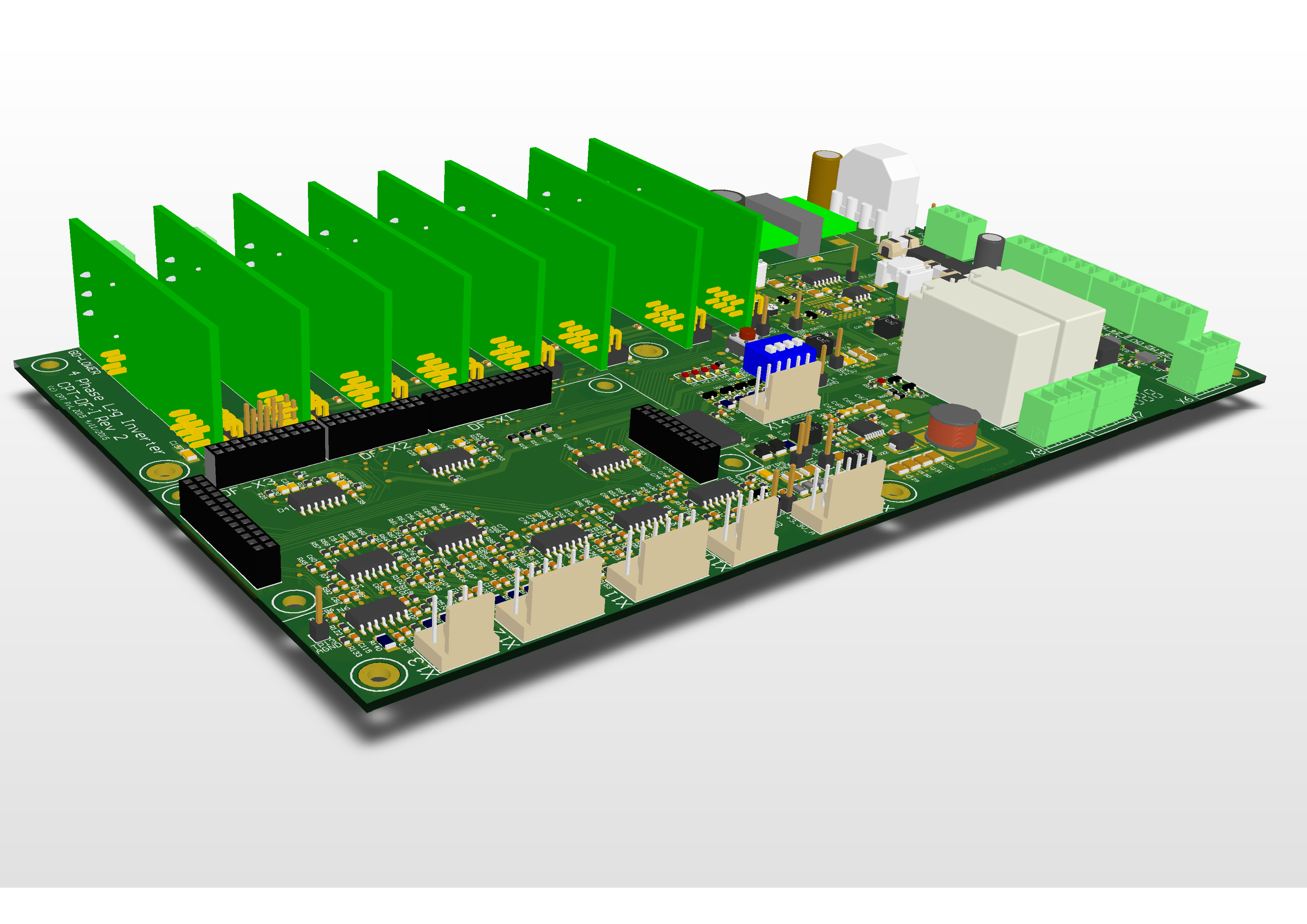

CPT-DFM1 - Inverter Controller Motherboard

CPT-DFM1
  • DF Series Communications Peripheral card
  • Default Load: CPT-DF28377D
  • Serial Flash Memory with 1Mbit of non-volatile storage
  • On-Card Status Indications
  • Isolated Digital I/O
  • Conditioned Analog Inputs (Low voltage inputs)
  • On-card logic level supply generation
  • Power supply operation from input 24VDC
  • Dimensions: 220mm x 130mm (7.09" x 5.12")

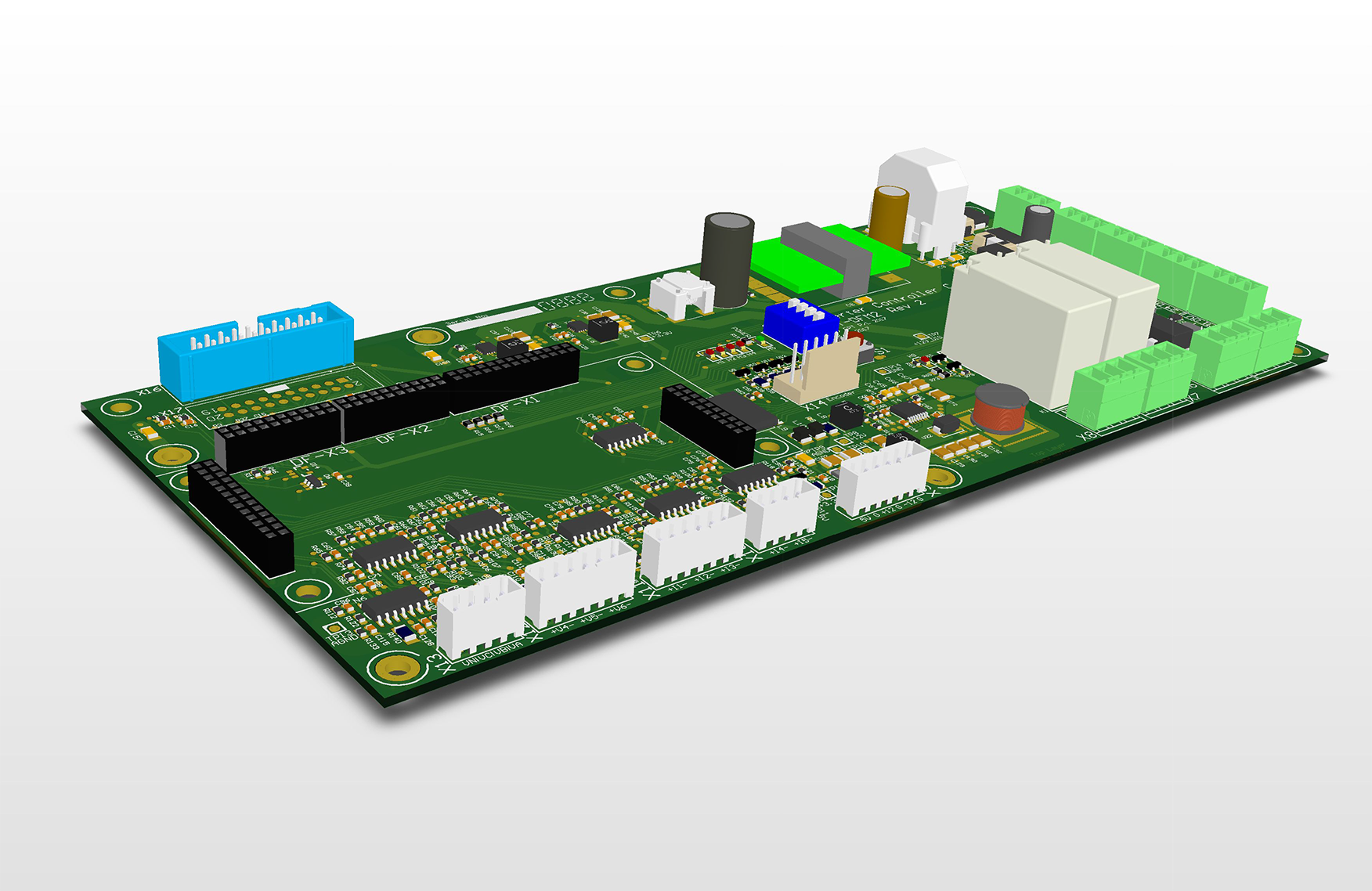

CPT-DFM2 - Inverter Controller Motherboard

CPT-DFM2
  • DF Series Communications Peripheral card
  • Default Load: CPT-DF28377D
  • Serial Flash Memory with 1Mbit of non-volatile storage
  • On-Card Status Indications
  • Isolated Digital I/O
  • Conditioned Analog Inputs (Low voltage inputs)
  • 2 off TTL level Gate Interface (8 way) with Fault Reset and Reset Capability
  • On-card logic level supply generation
  • Power supply operation from input 24VDC
  • Dimensions: 220mm x 130mm (7.09" x 5.12")

CPT-DFTS - DF Series Test/Development Platform

CPT-DFTS
  • Provides a development platform for the CPT-DFCC MCU controller cards
  • Suitable for CPT-DFCC board testing
  • Flexible I/O configuration
  • Industry Standard IDC connector interface
  • 12V Power Supply Input
  • Dimensions: 180mm x 140mm (7.09" x 5.51")
